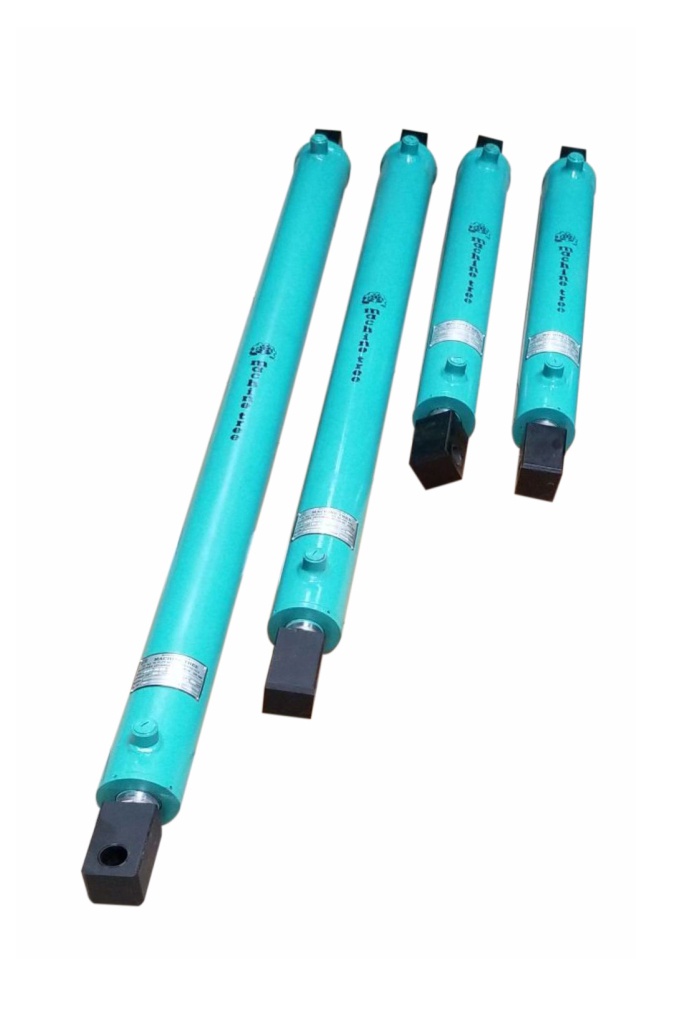

Hydraulic Cylinders

Capacity: 5 to 500 Ton
Stroke: 50 to 2000 mm
Max. Working Pressure: 700 bar

Types	Mounting Style
Single Acting Cylinder	Clevis mounting
Double Acting Cylinder	Double (Female) Clevis mounting at rear end
Telescopic Cylinder	Intermediate trunnion mounting
Pushing / Pulling Cylinder	Front / Rear Trunnion mounting
Piston Accumulators	Front / Rear Rectangle Flange mounting

Side/ End foot mounting.

(Operated by Hand pump / Power pack)

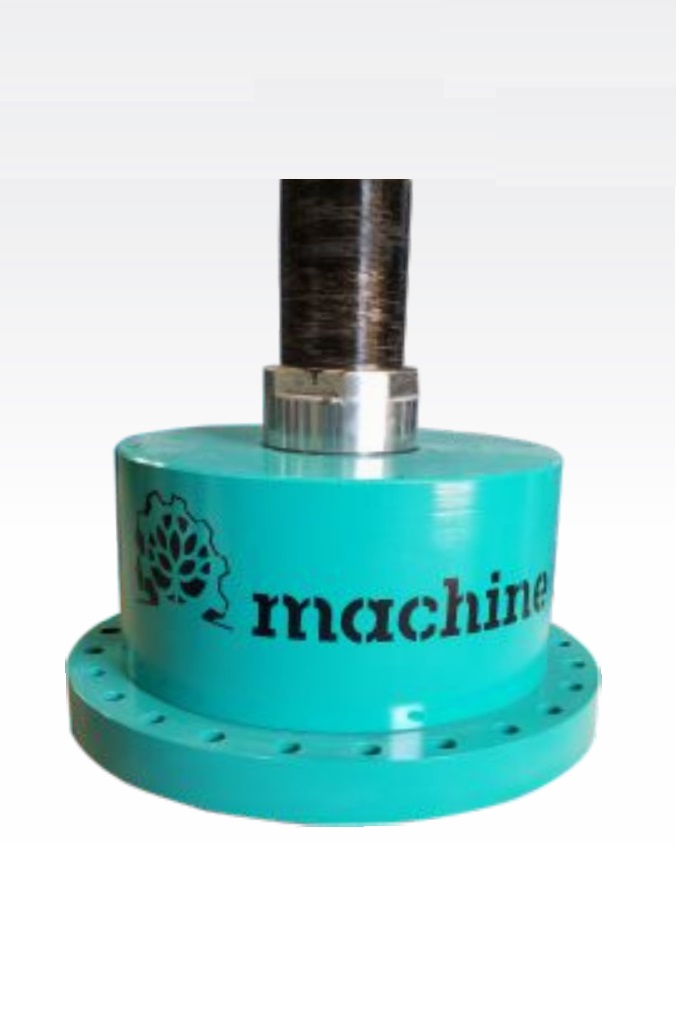

600 Ton Pulling Cylinders

Capacity: 200-600 Ton
Stroke: up to 100 mm

When it deals with creating maximum force using minimum effort, hydraulics is the best choice. The defence test rig applications need to produce a large pulling force. Machine tree has the capacity to design, build and install custom built pulling jacks. We are poised to take on your most challenging and complex projects, from conceptual design to installation and commissioning.
